Product Details

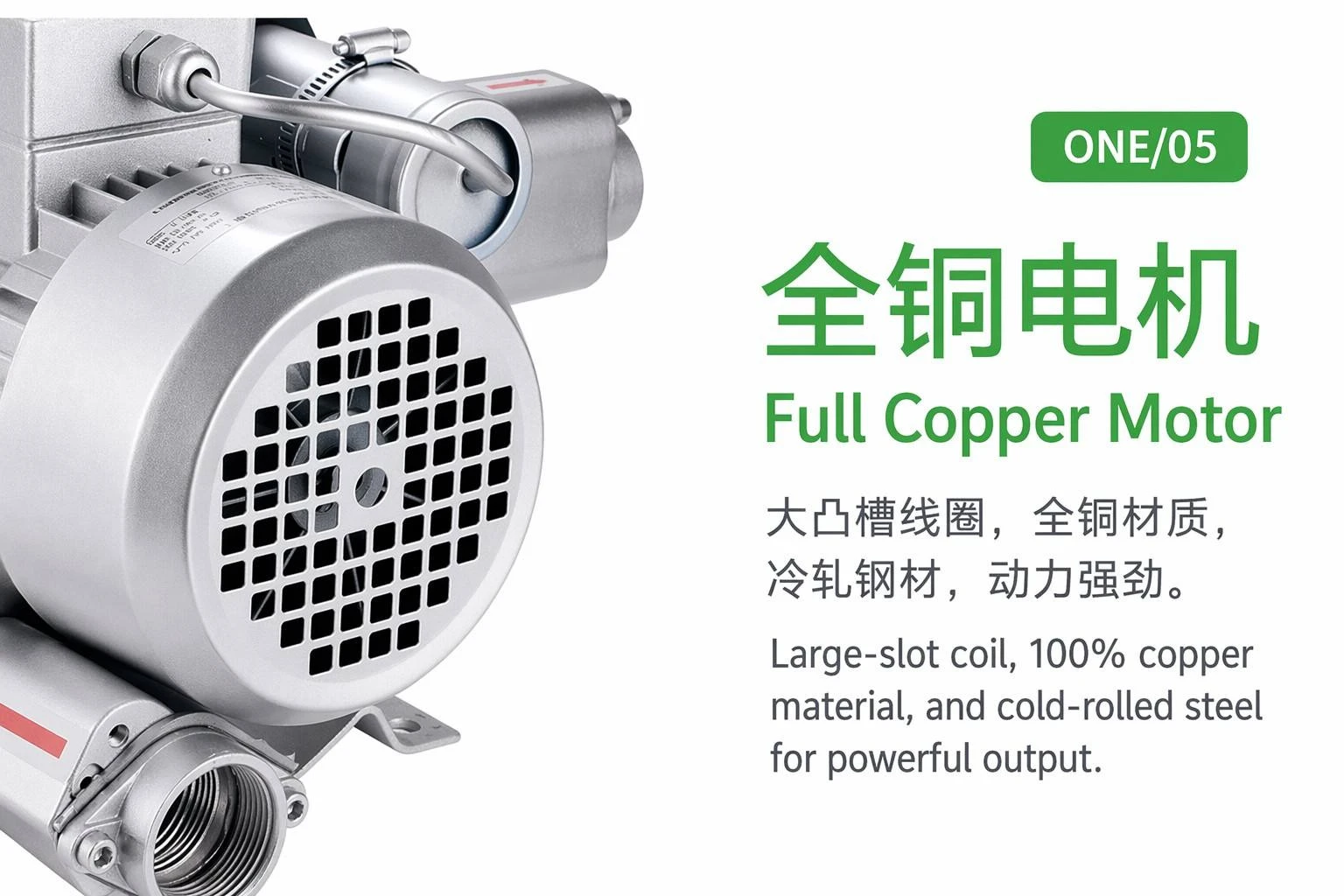

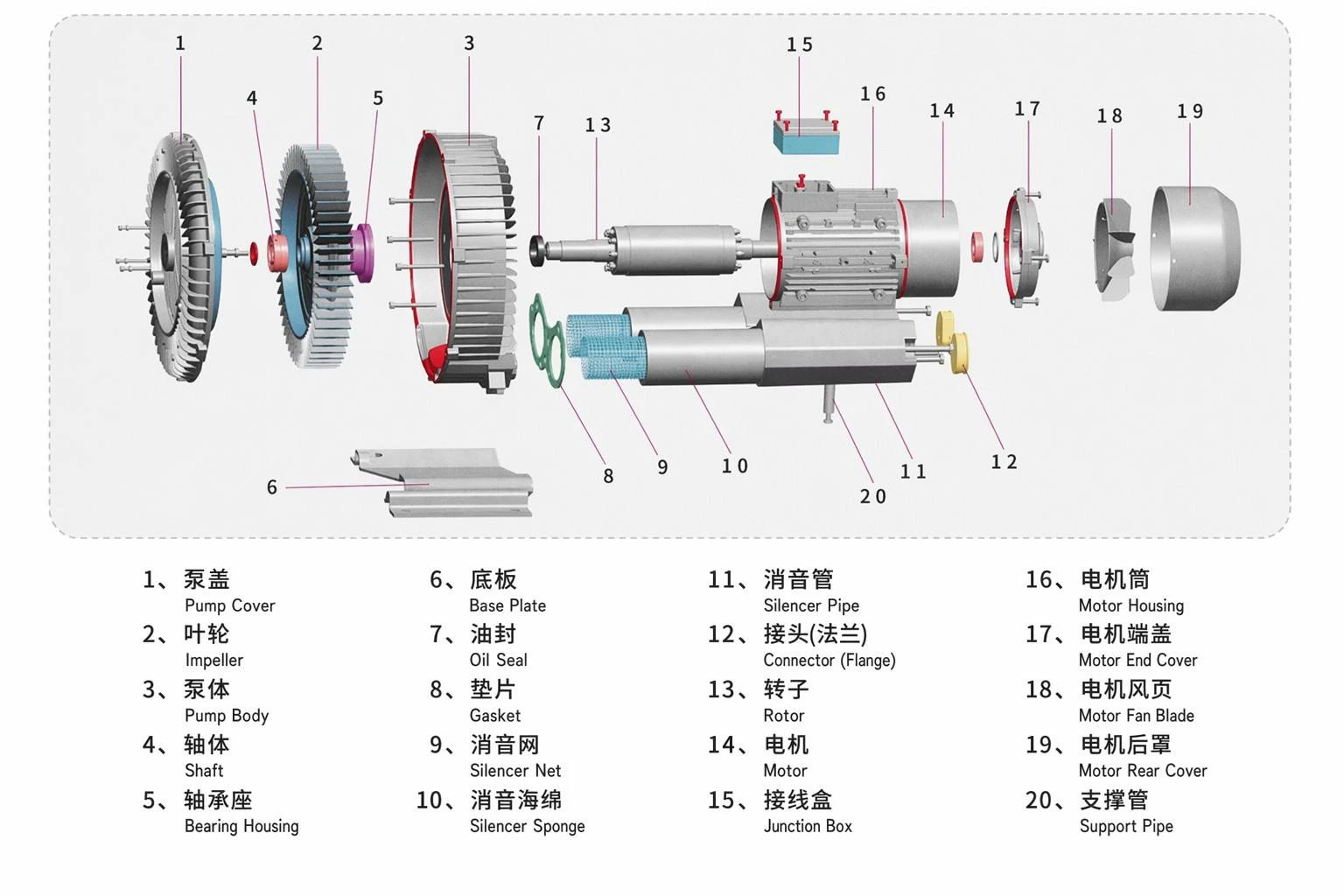

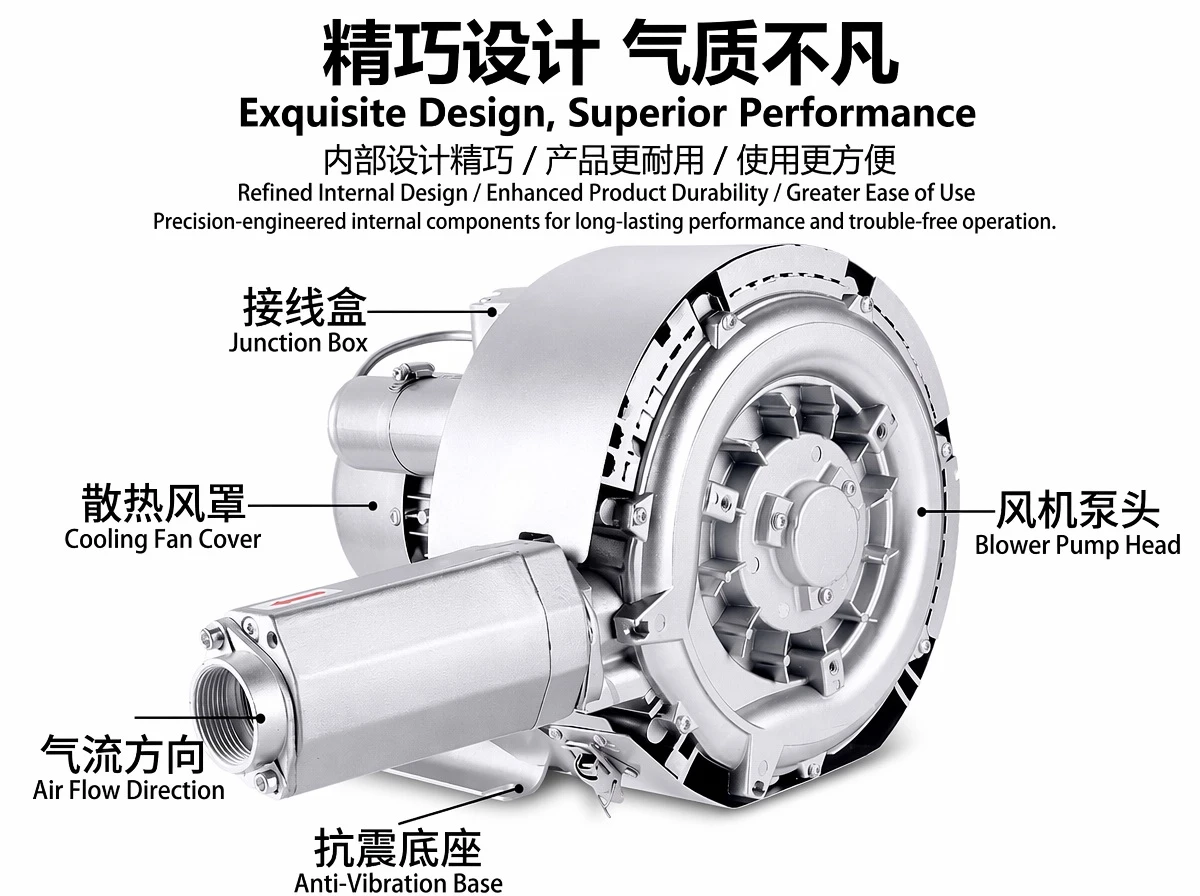

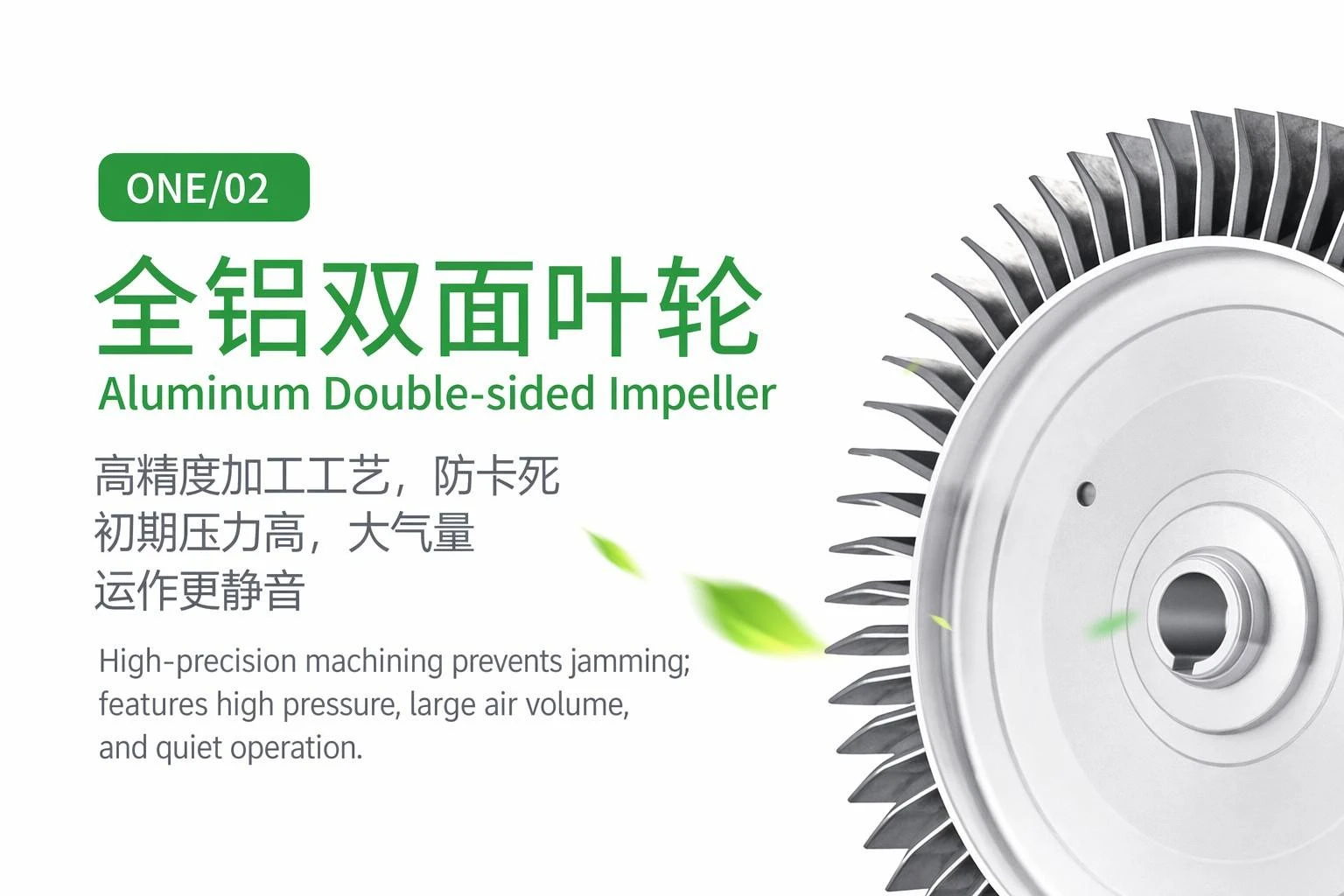

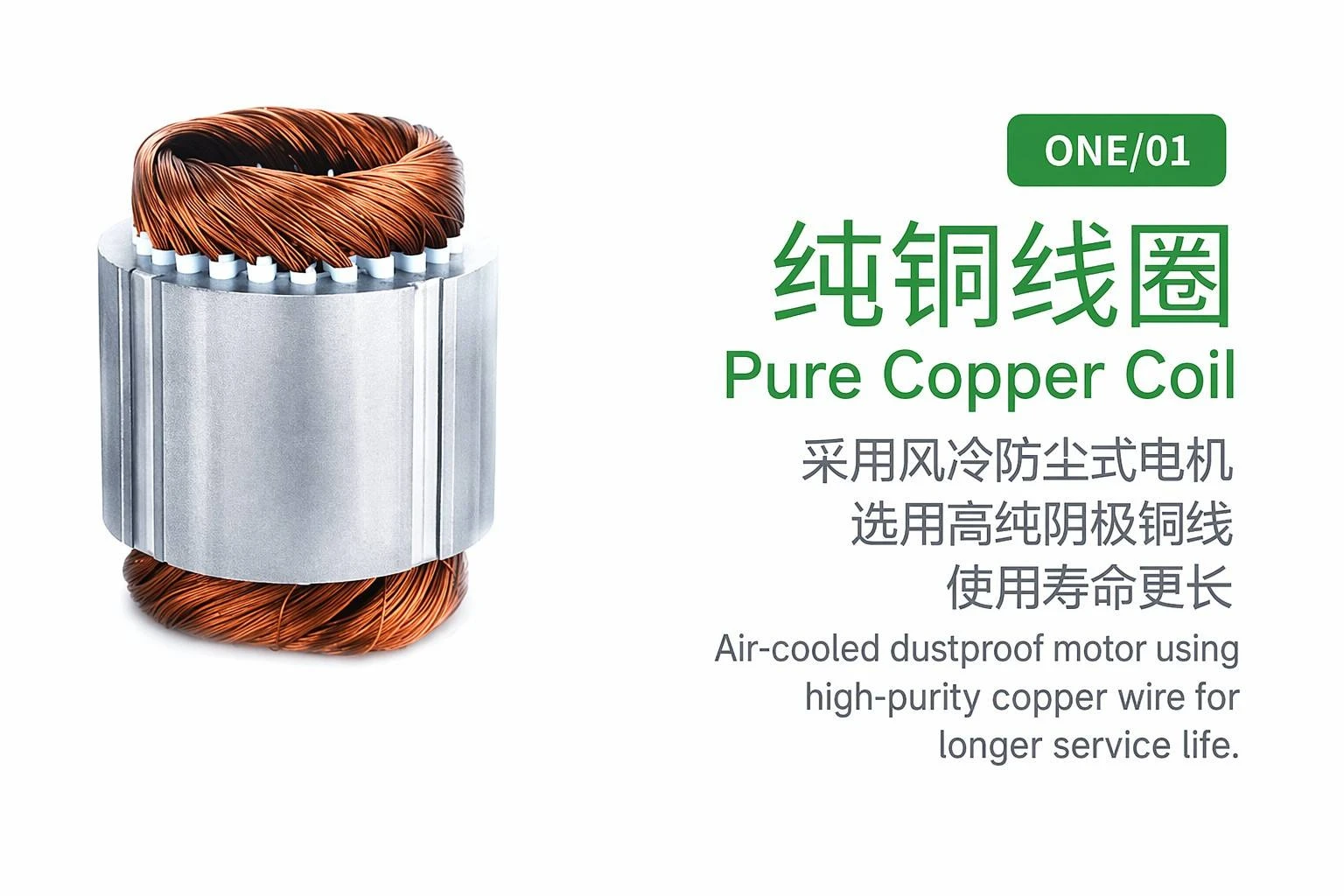

The High Flow Aluminum Shell Stage Blower photographs showcase the 2XGB 320H26 model, engineered for applications demanding substantial air volume from a lightweight aluminum platform. Real-shot images present the complete unit with its precision-cast aluminum alloy housing, dual threaded flange connectors, and integrated cooling fin structure visible across all external surfaces. Internal structure cutaways reveal the two impellers configured in series on a single shaft inside the side-channel pump body, with the regenerative gap between blades and housing wall ensuring dry-running oil-free operation throughout the service life. The pure copper coil motor winding appears in cross-section photographs, alongside sealed C&U bearings and the gasketed pump chamber seal. Material detail close-ups document the aluminum casting finish, the threaded port machining precision, the sound-absorbing silencer material density, and the base plate mounting hardware. The performance table specifies 110 cubic meters per hour at 50Hz, with -200 mbar vacuum and 230 mbar pressure from a 0.85 kW motor weighing 17 kilograms. Application images illustrate use in tofu machine soybean handling, milk carton vacuum filling, and labeling line suction stations. For food processing and packaging operations requiring clean high-flow pneumatic power, the High Flow Aluminum Shell Stage Blower provides reliable oil-free air movement.
Twin impeller vortex fan parameter table & complete machine installation dimensions explanation

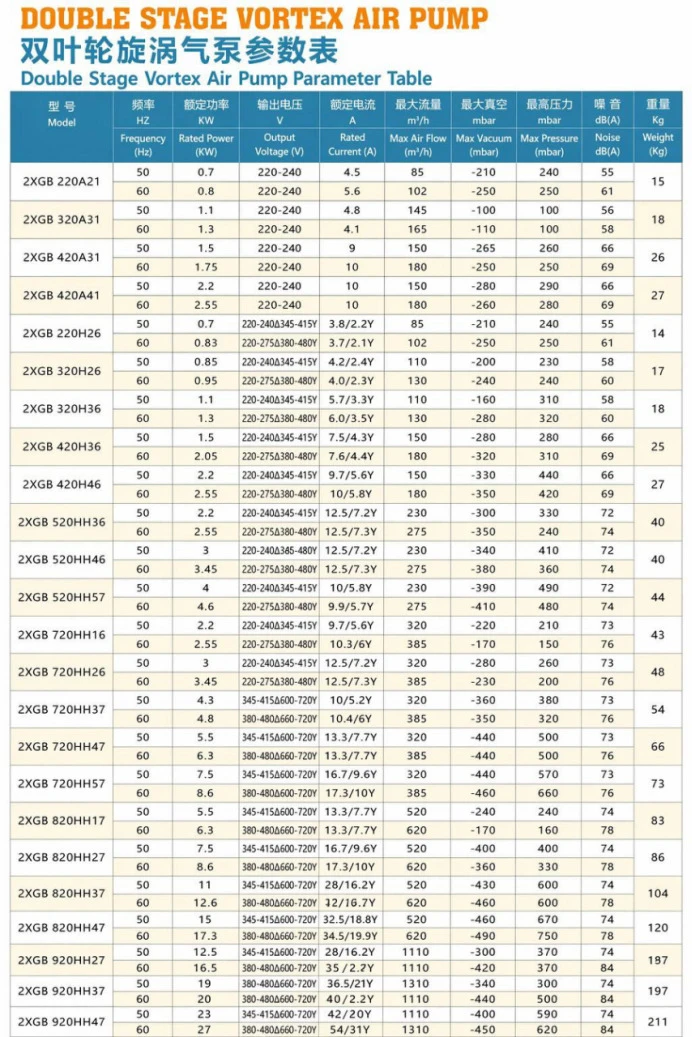

- Twin impeller vortex fan performance parameter table
|
Product Name |
2XGB 320H26 Double Stage Vortex Air Pump |
|
Frequency |
50Hz / 60Hz |
|
Rated Power |
0.85 kW / 0.95 kW |
|
Output Voltage |
220-240Δ345-415Y / 220-275Δ380-480Y |
|
Rated Current |
4.2/2.4 Y / 4.0/2.3 Y |
|
Max Air Flow |
110 m³/h / 130 m³/h |
|
Max Vacuum |
-200 mbar / -240 mbar |
|
Max Pressure |
230 mbar / 240 mbar |
|
Noise |
58 dB(A) / 60 dB(A) |
|
Weight |
17 Kg |

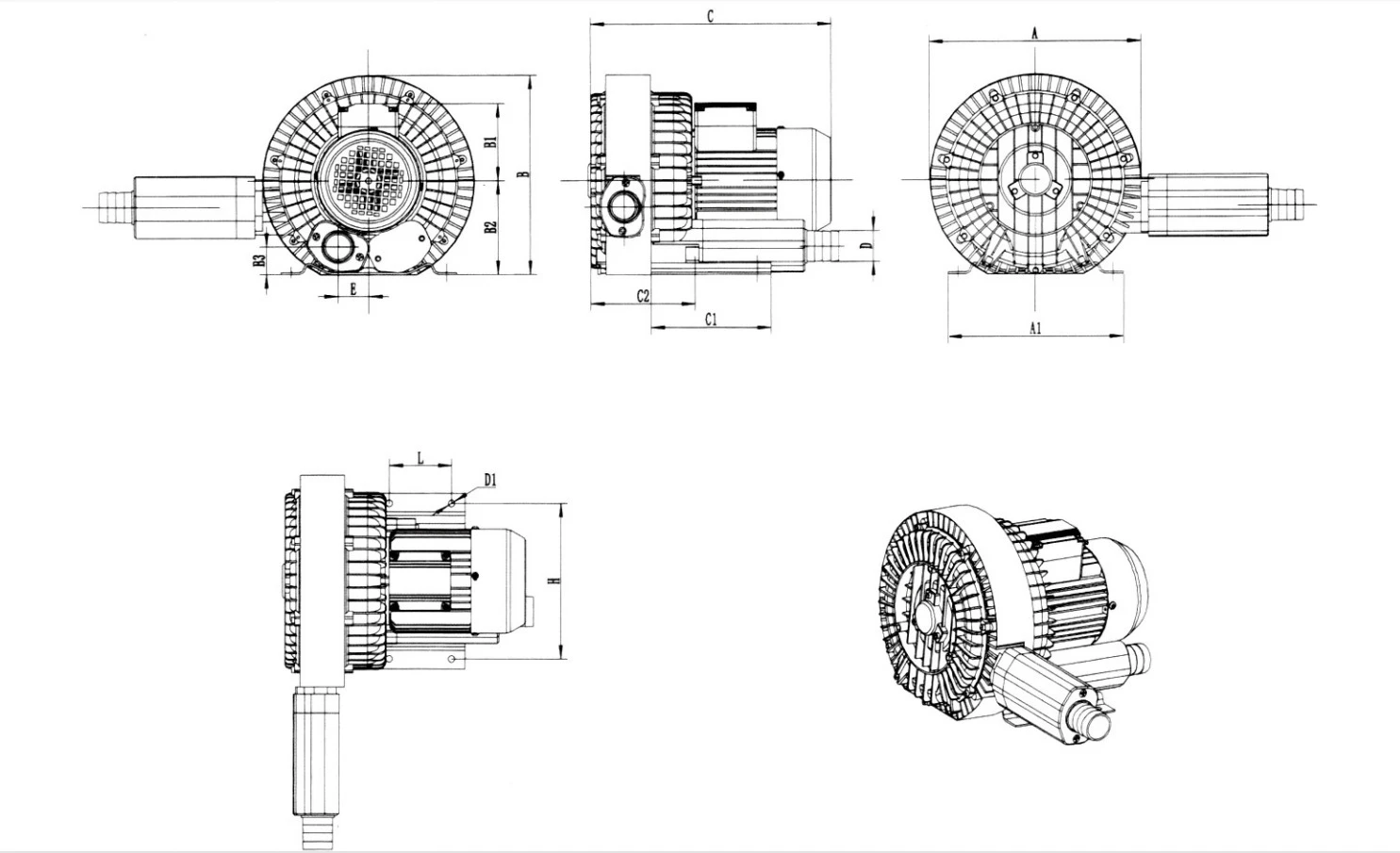

- Twin impeller vortex fan installation dimensions explanation

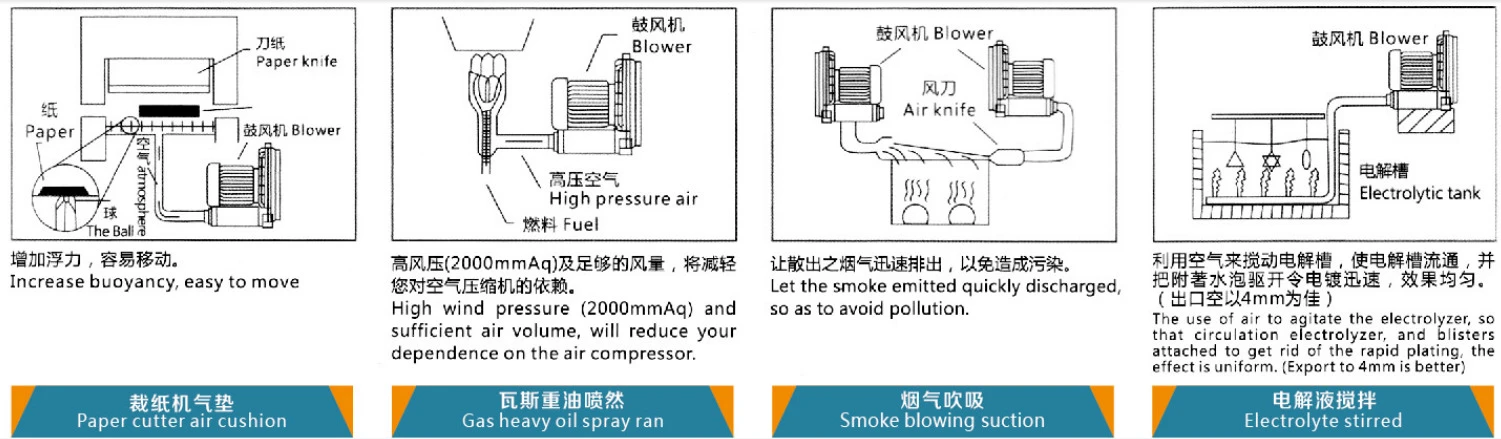

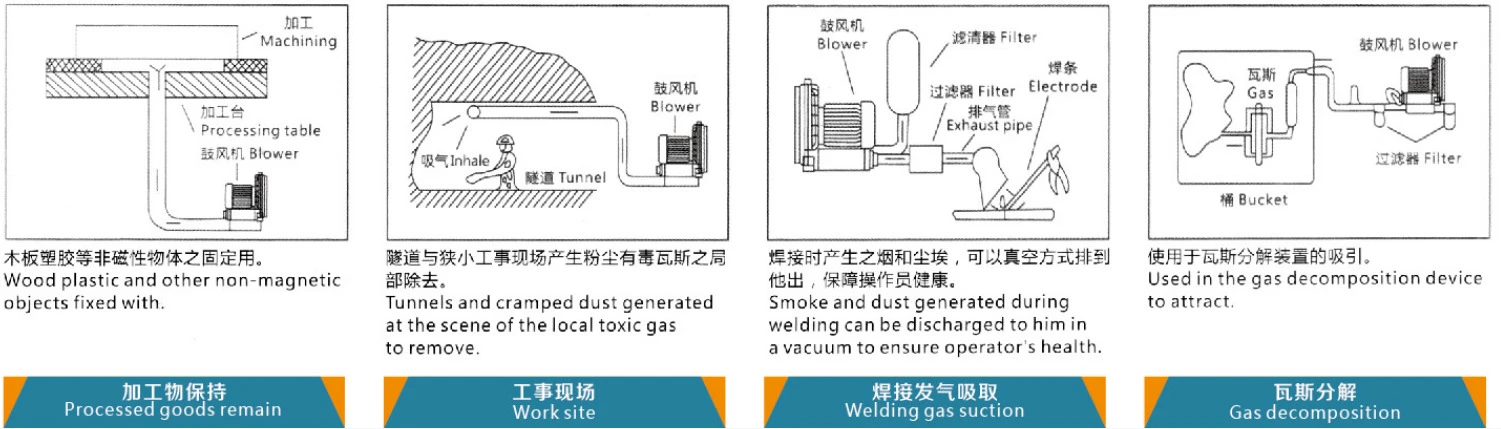

Application scenarios introduction
Cleanliness is the top priority in the food sector, making our oil-free vortex pumps the ideal pneumatic choice. In "tofu machines," the blower attracts and delivers soybeans to cleaning tanks, automating the initial handling phase. For dairy lines, it provides "milk box vacuum" suction, a critical step for accurately filling and sealing milk cartridges on high-speed conveyors. The blower also supports the labeling phase through "suction pressure" used to fix labels or carton flaps. Because the air output is certified clean and dry, food processors can maintain high-speed automation without the risk of lubricant mist reaching the product, ensuring full compliance with international food hygiene regulations.
Custom processing workflow
Packaging and transportation

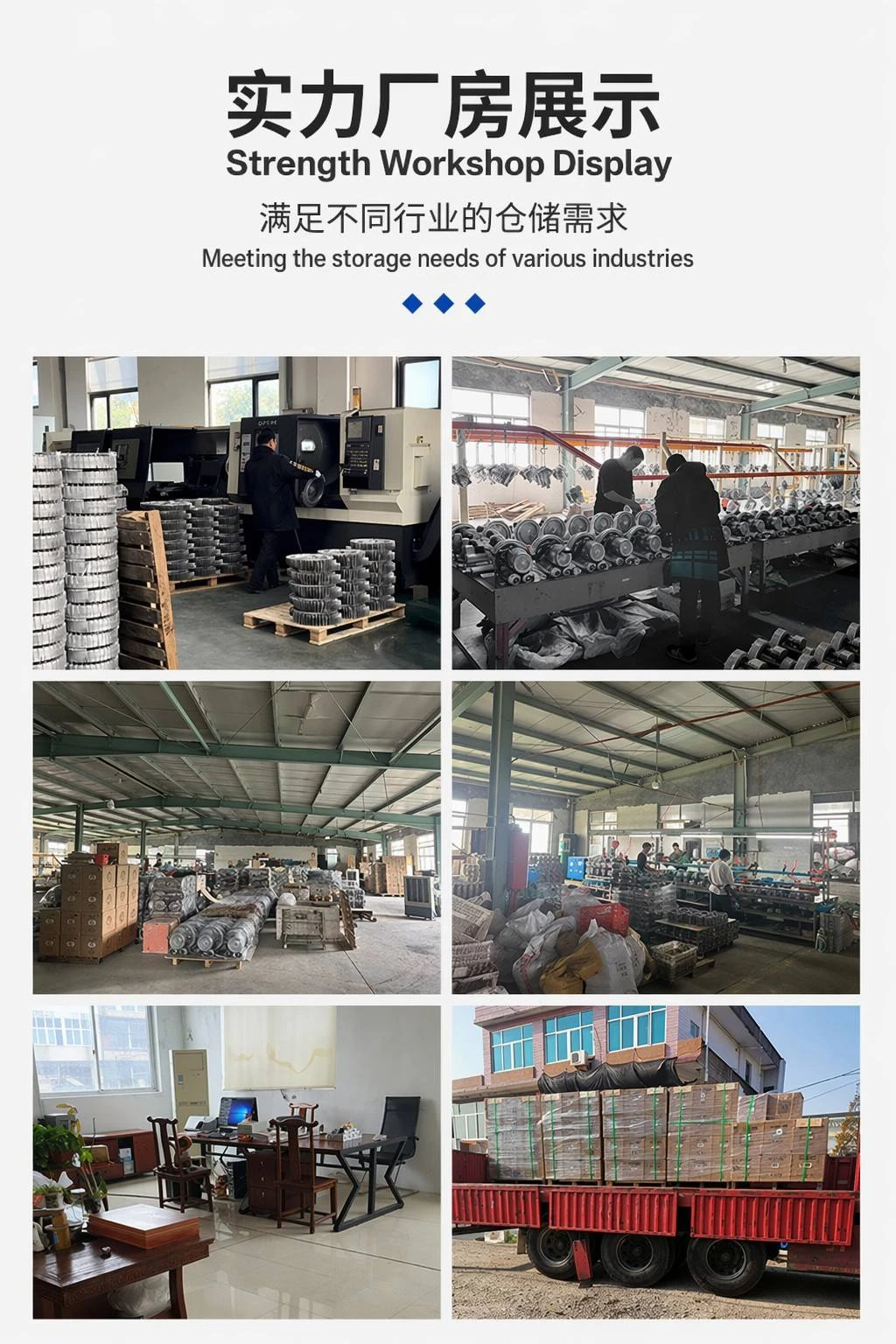

Factory introduction
FAQ
1. Q: How many diffusers can a 1.5kW double-stage blower drive?
A: Typically 20-40 nano-tube or disc diffusers, depending on the water depth and pipe layout.
2. Q: What is the best depth for double-stage aeration?
A: They are most effective in ponds and tanks between 1.5 and 4 meters deep.
3. Q: Can the blower handle saltwater environments?
A: Yes, the die-cast aluminum housing is naturally resistant to corrosion from salt spray.
4. Q: How do I protect the blower from rain at the pond bank?
A: We recommend a simple ventilated rain cover to prevent direct water entry into the motor or ports.
5. Q: Does high humidity affect the blower's performance?
A: No, but ensure the intake filter is checked more often to prevent moisture-clumping of dust.
6. Q: Can it run continuously for months during the growing season?
A: Yes, many of our clients run their aeration blowers 24/7 for 6-8 months without stopping.
7. Q: What size pipe should I use for a 2XGB 420 model?
A: We recommend 50mm or 2-inch PVC or flexible hose to minimize pressure drop over long distances.
8. Q: Will the blower overheat if a diffuser is blocked?
A: It can. We strongly recommend installing a pressure relief valve to vent air if pressure exceeds safe limits.
9. Q: How often should I clean the pond-side intake filter?
A: In outdoor agricultural settings, we recommend a weekly inspection and cleaning.
10. Q: Can I use one blower for multiple tanks?
A: Yes, by using a manifold with individual valves to balance the airflow across each tank.
